Medium Voltage Switchgear
KYN61-40.5, KYN28-24, KYN28-12 and MVnex-type cabinet solutions for substations, industrial facilities and utility distribution rooms.
Open MV categoryProduct center
Switchgear, distribution and substation product categories.
Use this product center to review JCON ELEC equipment by application level, then open the detailed pages for project scope, model selection and RFQ inputs.
Products
Find a product series
Review equipment families and cabinet platforms against your drawings, ratings and component requirements.
15 of 15 entries
Medium Voltage Switchgear
Medium-voltage incoming, metering and feeder panels for project-based distribution and protection.
View productRing Main Unit (RMU)
Compact ring-network distribution and transformer protection configurations.
View product24kV Ring Main Unit
RMU configurations for 24kV distribution networks and substation projects.
View productLow Voltage Switchgear
GGD, GCS and MNS configurations for main distribution, MCC and outgoing feeders.
View productAuthorized Cabinet Systems
Schneider, Siemens and Changshu cabinet platforms for project-specific review.
View productKYN28-24 Medium Voltage Switchgear
24kV metal-clad withdrawable switchgear for indoor power distribution.
View productGCS Low Voltage Switchgear
Withdrawable low-voltage distribution and motor-control sections.
View productControl Cabinets
PLC, VFD, soft starter, pump, fan and process automation control cabinets.
View productPrefabricated Substation
Coordinated MV, transformer, LV and auxiliary-system package boundaries.

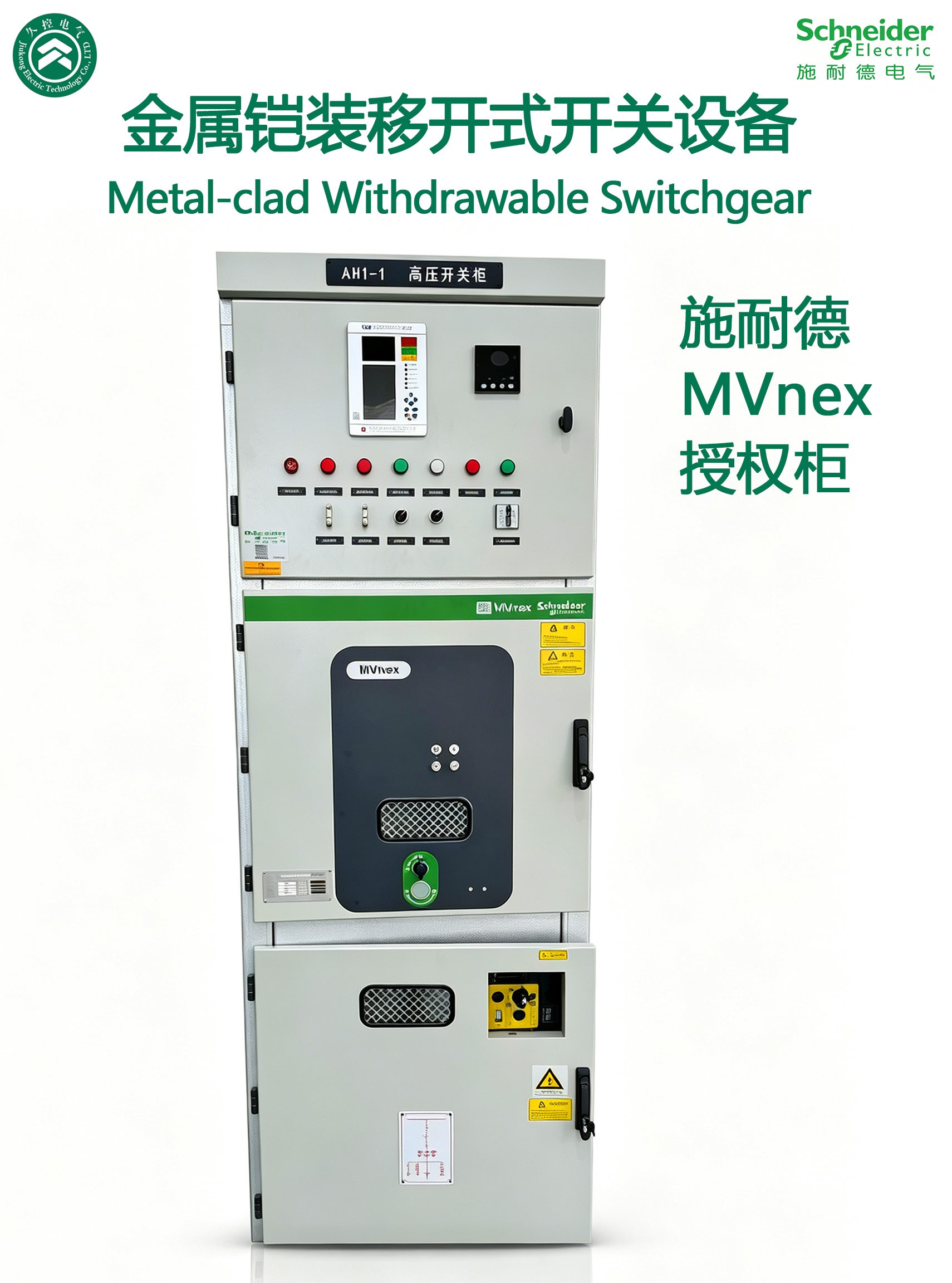

View productSchneider MVnex Authorized Switchgear
Schneider authorized medium-voltage cabinet platform for specified project requirements.
View productSchneider Blokset Low Voltage Switchgear
Authorized low-voltage cabinet platform for main distribution and MCC projects.
View productSchneider Prisma E Low Voltage Switchgear
Modular low-voltage cabinet system for commercial and park distribution.
View productSiemens SIVACON 8PT Low Voltage Switchgear
Low-voltage distribution and MCC platform with project-specific components.

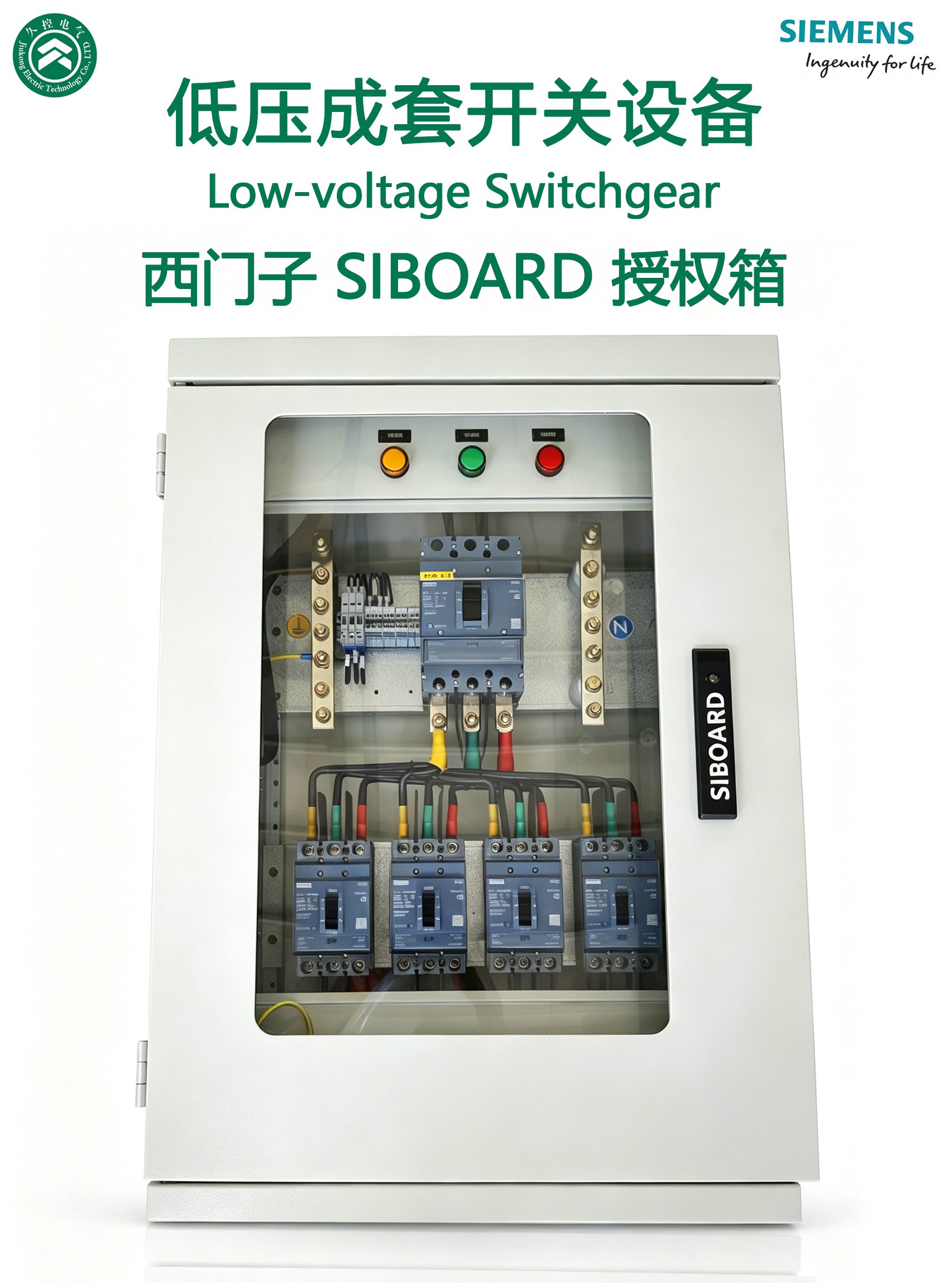

View productSiemens SIBOARD Distribution Cabinet
Compact cabinet platform for building floors and terminal distribution.
View productChangshu CGZ1 6.0 Intelligent Distribution Cabinet
Intelligent distribution cabinet with monitoring and energy-management options.
View productNo matching product. Send your drawings for a project review. Request a Quote
Core categories
Power distribution products for medium voltage, low voltage and integrated substation projects.
Final configuration is confirmed from single-line diagrams, load schedules, component brand requirements, project standards and destination terms.

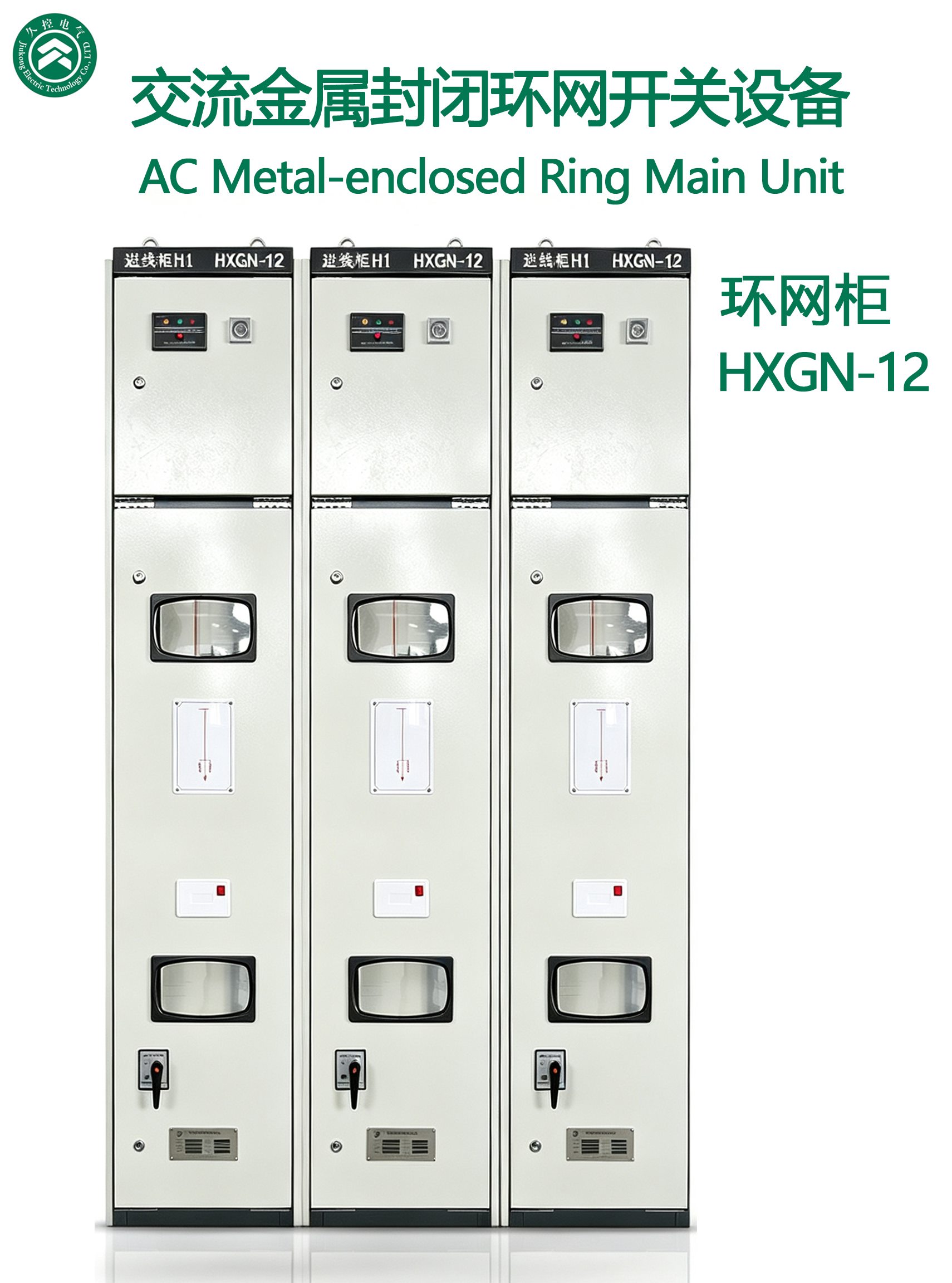

Ring Main Unit (RMU)
Compact RMU configurations for ring network power supply, transformer protection, urban utilities and prefabricated substations.
Open RMU category
Low Voltage Switchgear
GCS, GGD, GGJ, BlokSeT, Prisma E, SIVACON 8PT and SIBOARD systems for 0.4kV power distribution and control.
Open LV category
Control Cabinets
Photo: assembly detail, not a complete control cabinet.
PLC cabinets, fire pump controls, fan and water pump panels, ATS cabinets, inverter panels and soft starter cabinets.
Open control cabinet category
Prefabricated Substations
10kV/0.4kV compact substation packages integrating high-voltage units, transformers and low-voltage distribution equipment.
Open substation category
Authorized Cabinet Systems
Schneider Electric, Siemens and other authorized cabinet platform materials can be provided according to qualified project requirements.
Open authorized systemsAuthorized cabinet platforms
International and intelligent cabinet systems for qualified projects.
Authorized platform selection depends on project specification, certificate requirements, component brand and final technical review.
Schneider MVnex12/24kV authorized medium-voltage cabinet, 630-4000A, 25-40kA 4s, enclosure IP4X and compartment IP2X.
Schneider BloksetAC400-690V authorized low-voltage cabinet, 630-7300A, 50-100kA 1s, IP30-IP55.
Schneider Prisma EAC400-690V authorized modular low-voltage cabinet, 630-4000A, 50-100kA 1s, IP30-IP54.
Siemens SIVACON 8PTAC400-690V authorized low-voltage cabinet, 630-7400A, 50-100kA 1s, IP30-IP54.
Siemens SIBOARDAC400V authorized distribution cabinet, 100-1600A, 20-50kA 1s, IP30-IP44.
Changshu CGZ1 6.0AC400-690V intelligent distribution cabinet, 630-6300A, 50-80kA 1s, IP30-IP54, with smart monitoring options.
RFQ inputs
Send these details to get a faster technical and commercial response.
Even when the final brand or model is not fixed, these inputs help JCON ELEC match the right cabinet structure and quotation scope.
Electrical drawings
Single-line diagram, system voltage, rated current, feeder list and protection arrangement.
BOQ and quantities
Panel list, cabinet type, incoming and outgoing circuits, quantity and any spare feeder requirements.
Short-circuit rating
Short-time withstand current, breaking capacity, busbar rating and internal arc requirements if specified.
Component preference
Preferred breaker, relay, meter, capacitor, PLC or authorized cabinet platform requirements.
Site conditions
Indoor or outdoor use, IP rating, ambient temperature, altitude, humidity and installation constraints.
Commercial terms
Destination, Incoterms, documents, packaging, warranty expectation and required delivery schedule.
Detailed pages
High-intent product pages for common international RFQs.
These pages are designed for buyers who already know the voltage level, cabinet type or product series they need.
24kV Ring Main Unit
Compact RMU configuration notes for transformer substations, ring feeders and overseas EPC projects.
View detailsKYN28-24 Switchgear
24kV medium voltage panel selection, application range and quotation inputs.
View detailsGCS Low Voltage Switchgear
0.4kV withdrawable low-voltage switchgear for distribution rooms and industrial projects.
View detailsBuyer resources
Preparation guides for switchgear and substation RFQs.
Use these guides to prepare drawings, BOQ, product scope, documents and delivery assumptions before requesting a quotation.
Switchgear RFQ Guide
Core information to include in a switchgear inquiry for faster technical review.
Read guideGCS LV Checklist
Inputs needed for 0.4kV withdrawable low-voltage switchgear quotation.
Open checklistSubstation Buyer Guide
Transformer capacity, HV/RMU, LV switchgear and enclosure information to define.
Read buyer guideProject matching
Send drawings, BOQ or technical specifications for product selection.
JCON ELEC can review voltage level, cabinet scheme, component brand, quantities, certificates, packaging and delivery terms before quotation.
