Modular authorized LV cabinet

Schneider Prisma E authorized low voltage switchgear for modular distribution.

JCON ELEC can review Prisma E requirements for commercial buildings, industrial parks and secondary distribution projects that need a compact authorized cabinet platform.

Request a QuoteTechnical dataProduct Center

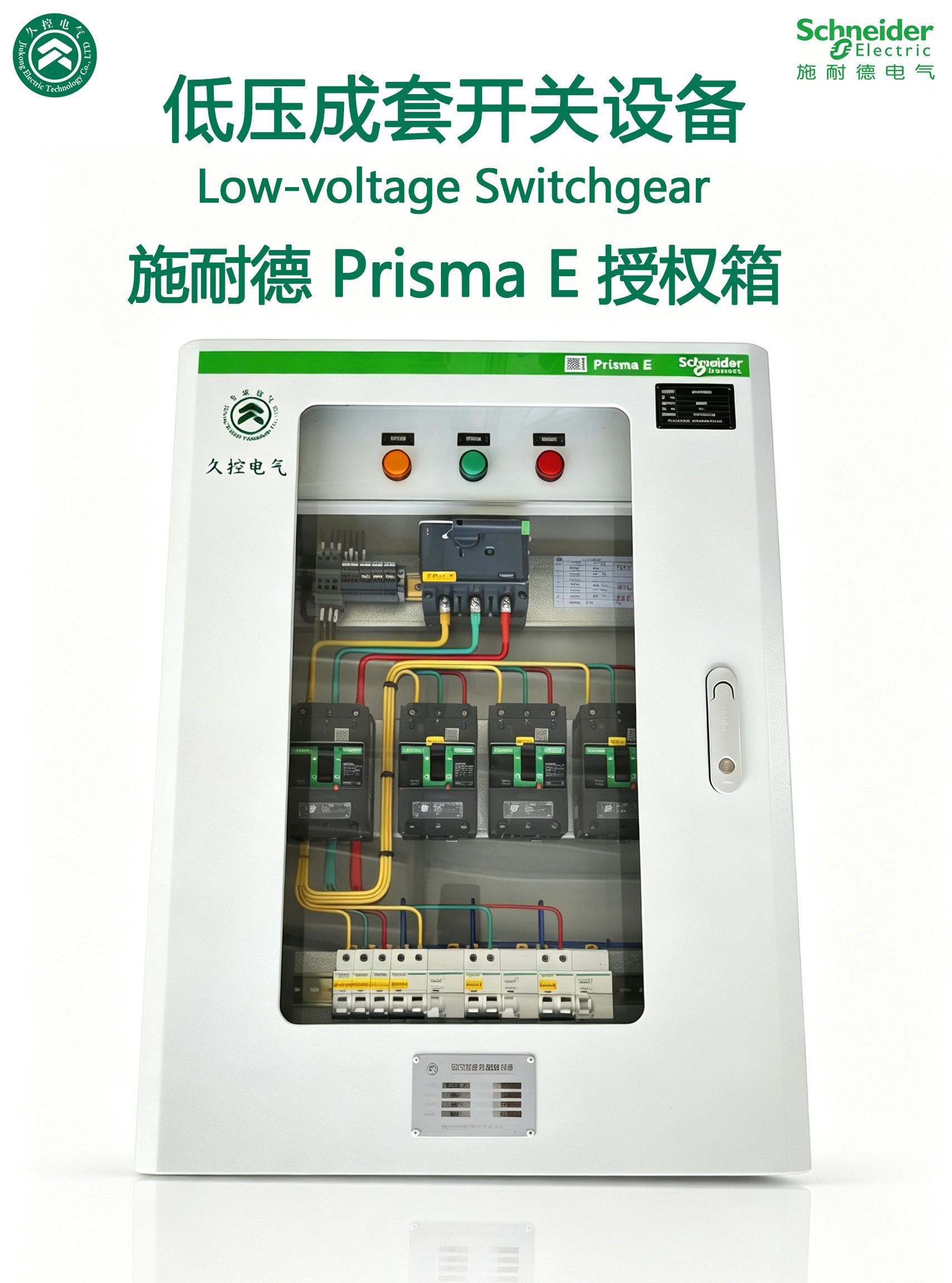

Schneider Prisma E low voltage switchgear cabinet

Application focus

Prisma E balances modular structure, cabinet economy and reliable component configuration for medium-scale low-voltage power distribution projects.

  • Commercial buildings, industrial parks and secondary distribution rooms.
  • Incoming, feeder, metering and terminal distribution cabinet sections.
  • Flexible configuration for projects with named Schneider component requirements.
  • Document preparation for consultant review and supplier qualification.
Technical reference

Prisma E: reference ratings and configuration scope

Reference voltage: 400-690 V AC; current: 630-4000 A; short-time withstand: 50-100 kA (1 s).

Rated voltage400-690 V AC
Rated current630-4000 A
Short-time withstand current50-100 kA (1 s)
Degree of protectionIP30-IP54
Referenced standardsGB/T 7251.1-2023; GB/T 7251.12-2013
Configuration basisThese are reference ranges, not a single guaranteed configuration. Ratings and IP options cannot be combined freely. Final values require approved project drawings and matching verification documents.

Source: JCON product information. Confirm the applicable standard editions, authorization scope and test evidence for the offered assembly. A standards reference is not a certificate or test report.

Modular cabinet structure

Suitable when project layout needs flexible low-voltage distribution sections and standardized assembly.

Balanced selection

A practical option when the project needs an authorized cabinet platform without the high-current scope of Blokset.

Submittal support

JCON can organize datasheets, drawings, certificate references and inspection documents for buyer review.

Offer comparison

Compare Prisma E quotations by platform and section scope.

For commercial and park distribution projects, the lowest cabinet price may exclude required breakers, metering, communication, copper busbar or approval documents. A comparable RFQ should define the cabinet boundary first.

Platform basisConfirm Prisma E authorized cabinet scope, section type, internal separation expectation and applicable project standard.
Component scopeList Schneider breaker, contactor, meter, SPD, CT, terminal and auxiliary component requirements by panel section.
DocumentsRequest drawings, datasheets, certificate references, routine test records and packing list in the same quotation package.
Delivery boundaryCompare EXW, FOB or destination terms separately from cabinet price, especially when panels, busbar and accessories are packed together.
Related review

Compare LV cabinet platforms before RFQ.

Use the related pages if the final LV platform or current range has not been fixed.

Schneider Blokset

Review the higher-current Schneider authorized LV cabinet option.

Open Blokset page

Low voltage switchgear

Compare standard and authorized 0.4kV cabinet options.

Open LV category
FAQ

Buyer questions

Where is Prisma E commonly used?Prisma E is commonly reviewed for commercial buildings, industrial parks, secondary distribution rooms and terminal power distribution projects.
What is the difference between Prisma E and Blokset?Prisma E focuses on compact modular low-voltage distribution, while Blokset is normally selected for higher-current and more demanding main distribution or MCC applications.
What should I send for quotation?Send panel list, SLD, rated current, short-circuit level, IP rating, component brand preference and installation conditions.
How should Prisma E offers be compared?Compare the Prisma E platform scope, section function, Schneider component basis, IP rating, copper busbar scope, documentation and delivery boundary before comparing price.
