Name: GCS Withdrawable Low Voltage Switchgear
Brand: JCON ELEC

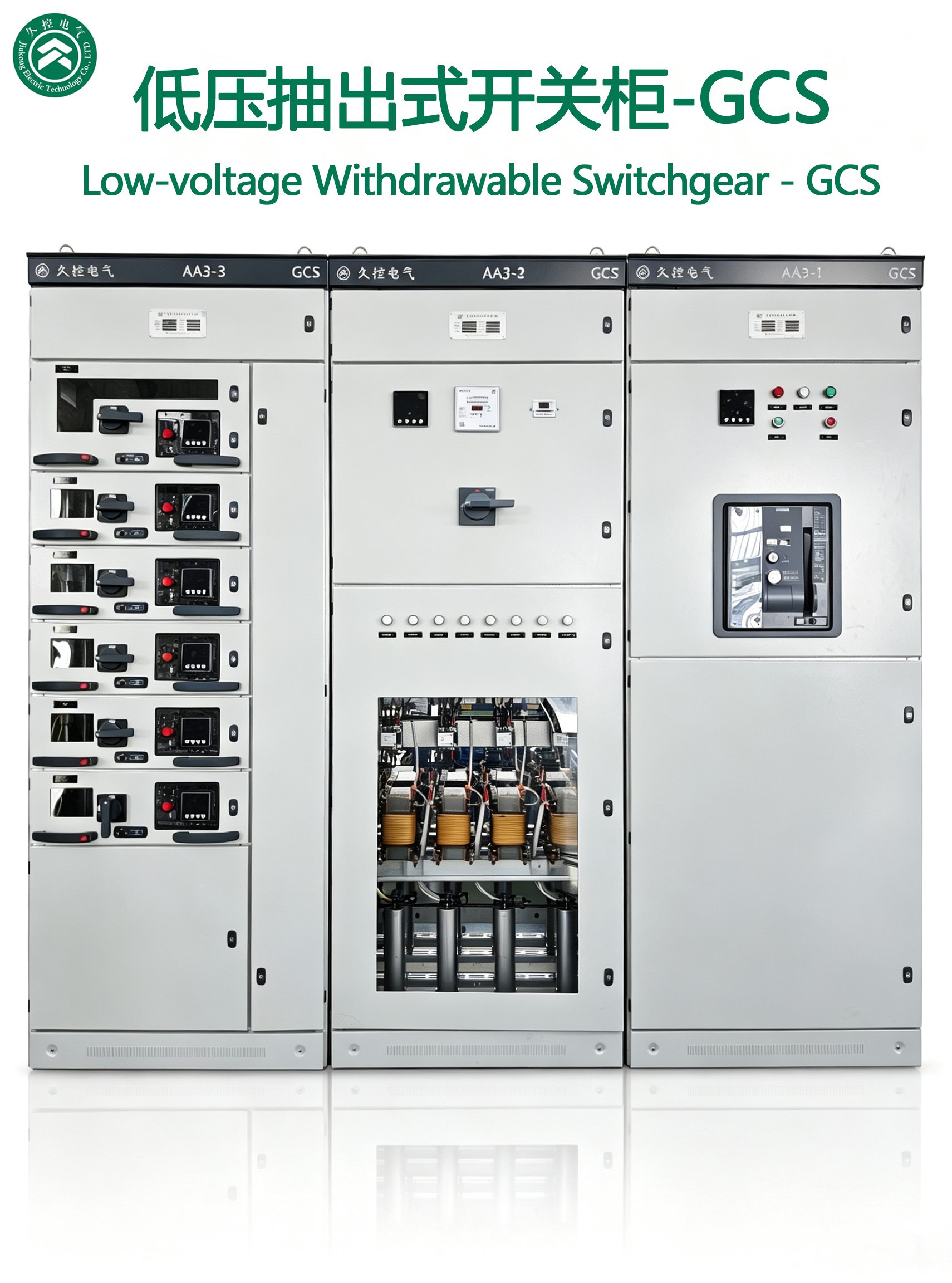

GCS withdrawable low-voltage switchgear cabinet lineup — GCS series cabinet photograph. Drawer layout, circuit quantity, metering and installed components follow the approved project arrangement; the picture does not establish every published rating.

Scope of supply

GCS assemblies are configured by section function and feeder duty. Main distribution, motor control and compensation requirements need a coordinated schedule; a busbar rating alone does not define the drawer quantity or the rating of each outgoing circuit.

Price and lead time follow the confirmed drawings, component brands and supply scope. The quotation must state packing, freight, destination, Incoterms and any site-service exclusions.

Manufacturing capability Quality documents

Technical reference

GCS: reference ratings and configuration scope

Reference voltage: 400 V AC; current: 630-4000 A; short-time withstand: 15 / 30 / 50 kA (1 s).

Rated voltage400 V AC

Rated current630-4000 A

Short-time withstand current15 / 30 / 50 kA (1 s)

Degree of protectionIP30

Referenced standardsGB/T 7251.1-2023; GB/T 7251.12-2013; IEC 61439-1; IEC 61439-2

Configuration basisThese are reference ranges, not a single guaranteed configuration. Ratings and IP options cannot be combined freely. Final values require approved project drawings and matching verification documents.

Source: JCON product information. Confirm the applicable standard editions, authorization scope and test evidence for the offered assembly. A standards reference is not a certificate or test report.

Configuration routes

These are RFQ routes, not pre-engineered packages. Confirm the actual ratings, brands and verification basis before ordering.

Application	Configuration to review	Buyer inputs
Main distribution and outgoing feedersRequest this configuration	Define incoming, bus-coupler, metering and outgoing distribution sections.	SLD, busbar current, fault duty, feeder quantities/ratings, breaker brands and cable entry.
MCC motor feedersRequest this configuration	Allocate motor feeders and the required starting/control arrangement to the agreed drawer schedule.	Motor list, starting method, drawer quantities, spare circuits, interlocks and communication.
Compensation and monitoring coordinationRequest this configuration	Identify compensation, metering or monitoring requirements separately rather than assuming them in the base panel price.	Required functions, component specification, ventilation, interface and the relevant design verification scope.

Documents and acceptance scope

Agree document deliverables and checks against the offered assembly. A company certificate or standards reference does not verify every configuration.

For quotationSLD, feeder and motor schedules, section arrangement, reference ratings and mandatory component brands.

For design approvalGeneral arrangement, drawer/feeder schedule, busbar and terminal arrangement, schematics and component list.

For acceptanceVerification evidence applicable to the actual assembly and agreed routine inspection records. Confirm which tests, documents and witness arrangements are included.

Quality documents Project references

FAQ

Buyer questions

Does a 4000 A reference mean every feeder is rated 4000 A?No. Busbar, incoming and outgoing circuit ratings are different design inputs. Each feeder and drawer must be specified from the load schedule and approved assembly design.

Is GCS interchangeable with GGD or MNS?No. GCS is a withdrawable cabinet family, GGD is a fixed arrangement and MNS is another cabinet system. Compare the specified structure, ratings, circuit arrangement and verification evidence rather than assuming direct interchangeability.

Can GCS be used for motor-control sections?MCC duties can be reviewed from the motor list and starting method. Drawer sizes, control interfaces, heat dissipation and spare circuits must be agreed for the project.

Is every listed short-time rating available with every configuration?No. The 15/30/50 kA references are not freely combinable options. Confirm the exact assembly, duration, components and supporting verification documents for the offered rating.
